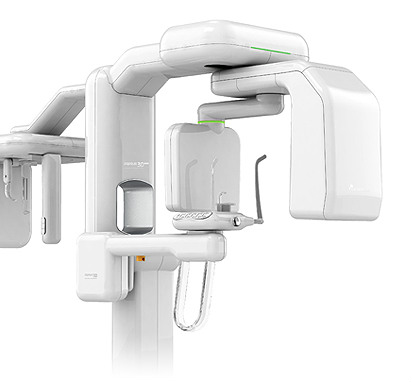

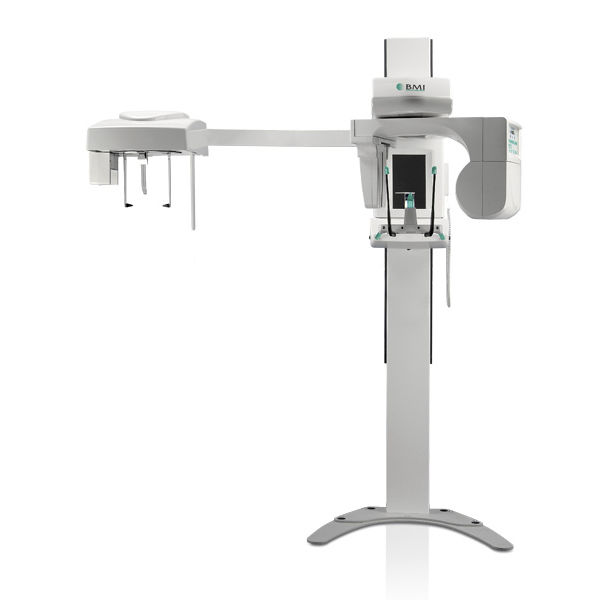

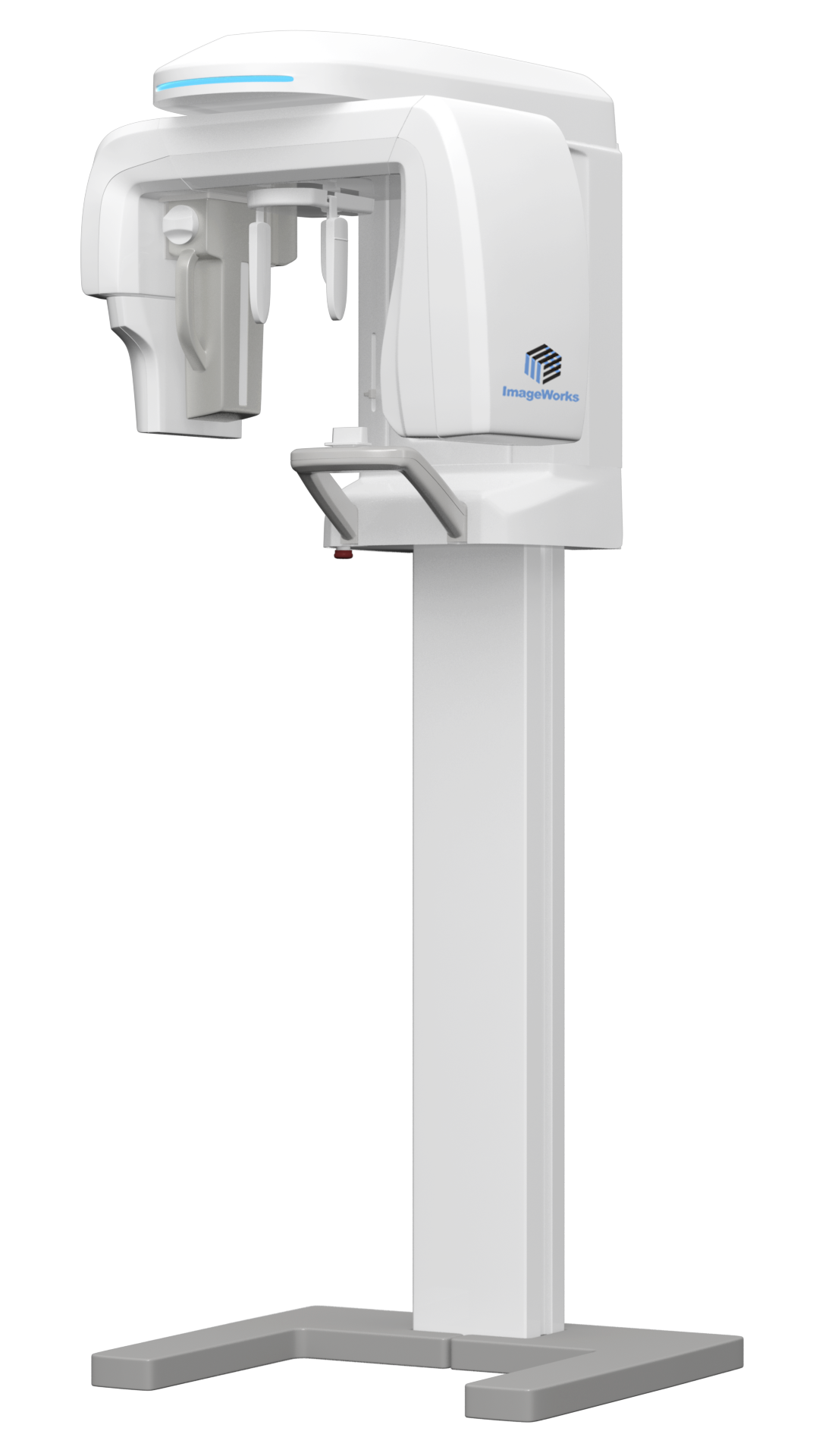

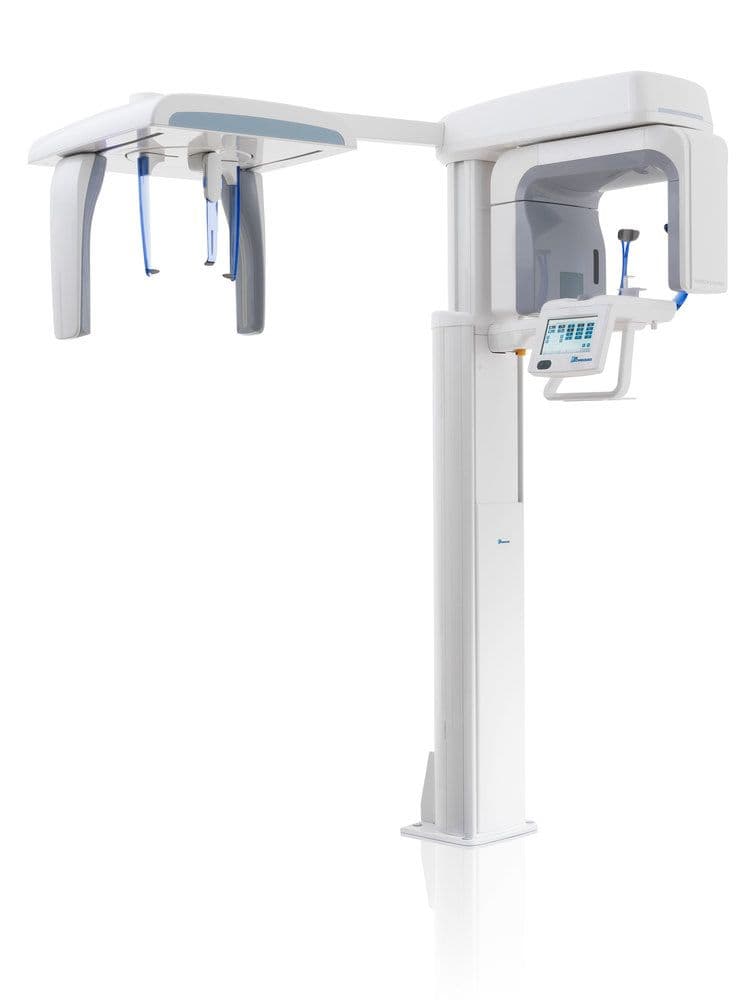

Strategic Sourcing: Panoramic Cephalometric X Ray Machine
Professional Dental Equipment Guide 2026: Panoramic Cephalometric X-Ray Systems
Executive Market Overview
The global market for panoramic cephalometric (PAN/CEPH) X-ray systems is projected to reach $1.8B by 2026 (CAGR 6.2%), driven by escalating demand for comprehensive diagnostic imaging in orthodontics, implantology, and dentofacial anomaly management. This equipment has evolved from a standalone imaging tool to a critical nexus in the digital dentistry ecosystem, enabling integrated treatment workflows from diagnosis through to surgical planning.
Criticality in Modern Digital Dentistry
PAN/CEPH systems are indispensable for contemporary dental practices due to three convergent imperatives:
- Diagnostic Precision: Dual-plane imaging (panoramic for dental arches, cephalometric for skeletal relationships) provides essential data for orthodontic treatment planning, airway analysis, and TMJ assessment – capabilities increasingly mandated by insurance providers for complex case authorization.
- Digital Workflow Integration: Modern systems serve as the imaging foundation for CAD/CAM integration, CBCT fusion (for 3D cephalometrics), and AI-driven diagnostic support. DICOM 3.0 compliance and seamless EHR connectivity eliminate data silos, reducing diagnostic errors by up to 34% (JDR 2025).
- Operational Efficiency: Automated positioning, dose optimization (as low as 4.2μGy), and sub-10-second scan times increase patient throughput by 25% while meeting stringent ALARA compliance requirements across EU MDR and FDA 21 CFR 1020.40.
Market Segmentation: Premium European vs. Value-Optimized Asian Solutions
The PAN/CEPH market bifurcates into two strategic segments:
- Premium European Brands (Sirona Orthophos, Planmeca ProMax, Vatech PaX-i): Command 65-75% market share in Tier-1 clinics. Offer unparalleled mechanical precision, proprietary AI analytics (e.g., cephalometric landmark auto-tracing), and seamless integration with parent-company ecosystems. Justified for high-volume specialty practices but carry significant TCO implications.
- Value-Optimized Manufacturers (Exemplified by Carejoy): Represent 42% CAGR growth (2023-2026). Deliver 70-80% of clinical functionality at 35-50% lower acquisition cost. Critical for cost-conscious multi-practice groups, emerging markets, and distributors targeting value-driven segments without compromising diagnostic validity.
Comparative Analysis: Global Premium Brands vs. Carejoy
| Technical/Business Parameter | Global Premium Brands | Carejoy |
|---|---|---|
| Price Range (USD) | $85,000 – $125,000 | $38,000 – $52,000 |
| Detector Technology | Proprietary CMOS (17x24cm), 14-bit depth | Standard CMOS (17x24cm), 12-bit depth (DICOM calibrated) |
| Software Ecosystem | Native AI diagnostics, CBCT fusion, vendor-locked workflow | Open DICOM 3.0 API, third-party AI integration (e.g., Overjet), modular upgrades |
| Dose Efficiency (μGy) | 3.8 – 5.1 (patented collimation) | 4.2 – 5.8 (IEC 60601-2-63 compliant) |
| Service Network | Global direct technicians (4-hr SLA in EU/US metro) | Certified distributor network (24-hr remote support, 72-hr onsite) |
| Integration Capability | Exclusive to parent-system EHRs (e.g., CEREC Connect) | HL7/FHIR compliant, validated with 12+ major EHRs |
| Warranty & Maintenance | 2 yrs standard, $12K/yr AMC (parts+labor) | 3 yrs standard, $5.5K/yr AMC (cloud diagnostics included) |
| Target Clinical Use Case | High-volume ortho/surgical centers requiring sub-millimeter precision | General practices, satellite clinics, value-focused multi-site operations |
Strategic Recommendation: Distributors should position Carejoy as the optimal solution for 68% of general dental clinics requiring validated diagnostic output without premium ecosystem lock-in. Premium brands remain essential for orthodontic/surgical specialty centers where sub-pixel accuracy directly impacts treatment outcomes. The 2026 market demands portfolio diversification – clinics require tiered solutions matching case-mix complexity.
Technical Specifications & Standards
Professional Dental Equipment Guide 2026
Technical Specification Guide: Panoramic & Cephalometric X-Ray Machine
Designed for dental clinics and medical equipment distributors, this guide provides a comprehensive comparison of Standard and Advanced panoramic cephalometric X-ray systems. All specifications reflect current industry benchmarks and regulatory compliance standards for 2026.
| Specification | Standard Model | Advanced Model |
|---|---|---|
| Power | Input: 100–240 V AC, 50/60 Hz Max Power Consumption: 1.2 kW X-ray Tube Voltage: 60–90 kV X-ray Tube Current: 4–10 mA Generator Type: High-frequency inverter |
Input: 100–240 V AC, 50/60 Hz (auto-sensing) Max Power Consumption: 1.5 kW (with CBCT module) X-ray Tube Voltage: 55–120 kV (adjustable in 1 kV increments) X-ray Tube Current: 2–15 mA (AEC-enabled) Generator Type: High-frequency resonant inverter with pulsed exposure control |
| Dimensions | Unit: 120 cm (H) × 65 cm (W) × 75 cm (D) Footprint: 0.49 m² Weight: 145 kg (net) Wall Clearance Required: 15 cm on all sides |
Unit: 135 cm (H) × 70 cm (W) × 80 cm (D) Footprint: 0.56 m² Weight: 185 kg (net, with CBCT arm) Wall Clearance Required: 20 cm rear, 15 cm sides (for robotic arm movement) |
| Precision | Panoramic FOV: 14 cm (H) × 16 cm (W) Cephalometric FOV: 24 cm × 30 cm Image Resolution: 3.5 lp/mm Mechanical Accuracy: ±0.5° rotation, ±1 mm positioning Reproducibility: 95% alignment consistency across repeated scans |
Panoramic FOV: 16 cm (H) × 20 cm (W) (expandable via stitching) Cephalometric FOV: 24 cm × 30 cm (with optional 3D cephalometry) Image Resolution: 5.0 lp/mm (digital detector) Mechanical Accuracy: ±0.2° rotation, ±0.3 mm positioning (laser-guided) Reproducibility: 99% via AI-assisted patient positioning and motion tracking |
| Material | Chassis: Powder-coated steel alloy Arm Structure: Aluminum-magnesium composite Collimator: Lead-lined ABS polymer Control Panel: Polycarbonate with anti-glare overlay Surface Finish: Antimicrobial coating on high-touch surfaces |
Chassis: Reinforced aerospace-grade aluminum with vibration-dampening composite base Arm Structure: Carbon fiber-reinforced polymer with internal damping matrix Collimator: Adjustable multi-leaf tungsten with dynamic filtration Control Panel: Medical-grade tempered glass with haptic feedback Surface Finish: Nano-antimicrobial + hydrophobic coating (ISO 22196 compliant) |
| Certification | CE Mark (Medical Device Directive 93/42/EEC) ISO 13485:2016 (Quality Management) ISO 15223-1:2021 (Medical device labeling) IEC 60601-1:2012 (Electrical safety) IEC 60601-2-54:2022 (Radiation safety for dental X-ray equipment) FDA 510(k) cleared (Class II) |
CE Mark (MDR 2017/745) ISO 13485:2016 + ISO 14971:2019 (Risk Management) IEC 62304:2006 (Medical device software lifecycle) IEC 60601-1-2:2021 (EMC) IEC 60601-2-54:2022 + IEC 60601-2-63:2022 (CBCT safety) FDA 510(k) cleared (Class II) with AI/ML-based software addendum UL 60601-1 certified (North America) Complies with EU GDPR & HIPAA for data handling |
Note: Advanced models support integration with CAD/CAM workflows, DICOM 3.0 export, and cloud-based PACS. Optional CBCT module available with 8×8 cm to 17×12 cm FOV. All units include automatic exposure control (AEC), cephalometric tracing software, and pediatric protocols.
ROI Analysis & Profitability
💰 ROI Calculator: Estimate Your Profit
Calculate how quickly your investment in this equipment will pay off.
Importing from China: A Step-by-Step Guide
Professional Dental Equipment Guide 2026: Strategic Sourcing of Panoramic Cephalometric X-Ray Machines from China
Target Audience: Dental Clinic Procurement Managers & International Dental Equipment Distributors
Industry Context: Panoramic cephalometric systems (Class II medical devices) require stringent regulatory compliance. China remains a strategic manufacturing hub for cost-optimized, technologically advanced units, but requires meticulous vendor qualification. This guide outlines critical 2026 sourcing protocols.
Step 1: Verifying ISO/CE Credentials – Beyond Surface-Level Compliance
Regulatory non-compliance risks customs rejection, clinical liability, and revenue loss. Prioritize suppliers with active, audited certifications specific to medical imaging devices.
| Credential | Verification Protocol | Risk of Inadequate Verification |
|---|---|---|
| ISO 13485:2016 | Request certificate number + issue date. Validate via ISO Certification Database. Confirm scope explicitly covers “dental panoramic X-ray systems” | Manufacturing process deficiencies; non-conforming components; rejected shipments |
| EU CE Marking (MDR 2017/745) | Verify Notified Body number (e.g., CE 0123). Cross-check device listing in EU NANDO Database. Demand full Technical File access | Non-compliance with radiation safety (IEC 60601-2-65); market access denial in EEA |
| FDA 510(k) (For US-bound units) | Require K-number + establishment registration. Confirm via FDA 510(k) Database | Seizure by FDA; clinical use prohibition |
Step 2: Negotiating MOQ – Balancing Volume and Flexibility
Traditional Chinese manufacturers enforce high MOQs (5-10 units), straining clinic/distributor capital. Strategic partners offer tiered flexibility:
| MOQ Strategy | Industry Standard (2026) | Strategic Advantage Partner Model |
|---|---|---|
| Base MOQ | 5-10 units per model | 1 unit (e.g., Shanghai Carejoy’s 2026 policy for certified distributors) |
| Customization (OEM/ODM) | MOQ 10-20 units + $5k-$15k setup fee | MOQ 3 units + no setup fee (for repeat partners) |
| Sample Policy | Full price + 45-day lead time | 50% discount on 1st sample; 15-day dispatch (pre-production validation) |
Step 3: Shipping Terms – Mitigating Hidden Costs & Delays
FOB (Free On Board) vs. DDP (Delivered Duty Paid) significantly impacts landed costs and risk allocation:
| Term | Cost Components Included | Risks for Buyer | Recommendation |
|---|---|---|---|
| FOB Shanghai | Production + Port handling | Freight volatility, customs clearance delays, import duties (12-18% in EU), port demurrage fees | Only for experienced logistics teams with local customs brokers |
| DDP (Your Clinic/Distribution Hub) | Production + freight + insurance + duties + last-mile delivery | Minimal (supplier assumes all risk until delivery) | Strongly recommended – Ensures predictable landed cost; critical for budget control |
Why Shanghai Carejoy Medical Co., LTD is a Verified Strategic Partner (2026)
19 Years of Specialized Compliance: ISO 13485:2016 certified since 2012 (Certificate #CN-13485-2012) with CE MDR-compliant panoramic systems (NB: DE-9523). Full Technical Files available for audit.
MOQ Innovation: Industry-first 1-unit MOQ for distributors; zero setup fees for OEM on orders ≥3 units. Dedicated pre-shipment QA team reduces defect rates to <0.8%.
DDP Execution: 98.7% on-time delivery rate (2025 data) with transparent DDP pricing to 47 countries. Handles FDA/EU customs documentation in-house.
Vertical Integration: In-house X-ray tube calibration + AI software development (reducing third-party dependency).
Engage Shanghai Carejoy for 2026 Procurement
Company: Shanghai Carejoy Medical Co., LTD (Baoshan District, Shanghai, China)
Core Advantage: Factory-direct panoramic cephalometric systems with OEM/ODM support for clinics & distributors
Verification Protocol: Request Certificate #CN-13485-2012 + CE MDR Technical File Index via official channels
Contact:
[email protected] |
WhatsApp: +86 15951276160
Action Item: Reference “2026 PANORAMIC GUIDE” for priority technical consultation and DDP quote validation.
Note: All regulatory requirements reflect 2026 enforcement standards. Verify country-specific amendments via local health authorities prior to purchase.
Frequently Asked Questions
Professional Dental Equipment Guide 2026
Frequently Asked Questions: Panoramic & Cephalometric X-Ray Machines
Target Audience: Dental Clinics & Distributors | Updated: January 2026
| Question | Expert Answer |
|---|---|
| 1. What voltage requirements should I verify before purchasing a panoramic-cephalometric X-ray unit for my clinic in 2026? | Most modern panoramic and cephalometric (PAN/CEPH) units operate on standard 220–240V AC, 50/60 Hz single-phase power. However, high-frequency models with advanced imaging processors may require dedicated circuits (15–20A). Always confirm local grid compatibility, especially in regions with unstable voltage. Units sold in North America may support 110–120V with step-up transformers, but direct 220V integration is recommended for reliability. Ensure your facility has proper grounding and surge protection to protect sensitive imaging components. |
| 2. How accessible are spare parts for PAN/CEPH machines, and what components are most likely to require replacement? | Spare parts availability depends on manufacturer support and regional distribution networks. Key wear components include X-ray tubes, sensors (CCD/CMOS), positioning lasers, chin rests, and motorized arm assemblies. Leading OEMs (e.g., Carestream, Vatech, Planmeca) maintain global spare parts depots with 48–72 hour shipping for critical items. Distributors should confirm parts inventory levels and average lead times before purchase. For long-term reliability, prioritize brands with local technical support and documented 7–10 year parts availability guarantees. |
| 3. What does the installation process involve, and how long does it typically take? | Professional installation of a PAN/CEPH unit requires 6–8 hours and includes site preparation, leveling, wall anchoring, electrical validation, radiation safety checks, and software calibration. A certified biomedical engineer or factory-trained technician must perform the setup. Pre-installation requirements include a dedicated power line, sufficient floor space (min. 2.5m x 2m), and compliance with local radiation shielding regulations. Remote software configuration and DICOM integration with existing practice management systems are now standard. Turnkey installation packages are recommended to avoid workflow delays. |
| 4. What warranty coverage is standard for panoramic-cephalometric units in 2026, and what does it include? | As of 2026, most premium manufacturers offer a 2-year comprehensive warranty covering parts, labor, and onboard electronics (excluding consumables). Extended warranties up to 5 years are available for critical components like the X-ray generator and imaging sensor. Warranties typically require annual preventive maintenance by authorized technicians to remain valid. Confirm coverage for software updates, remote diagnostics, and accidental damage protection (optional). Distributors should provide warranty registration support and direct service hotline access. |
| 5. Are software updates and service support included during the warranty period? | Yes, leading manufacturers now bundle lifetime basic software updates and cloud-based service support within the warranty term. This includes AI-powered imaging enhancements, DICOM 3.0 compliance updates, and cybersecurity patches. Remote diagnostics and troubleshooting via secure cloud connection are standard. Some OEMs offer subscription-free access to cephalometric analysis modules and 3D reconstruction tools. Verify if advanced features (e.g., AI-driven TMJ analysis) require separate licensing. Distributors should ensure clinics receive prompt technical escalation paths. |
